Long Span Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation

China Long Span  Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation supplier
Long Span  Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation supplier Long Span  Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation supplier Long Span  Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation supplier Long Span  Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation supplier

Large Image :  Long Span Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: ISO9001
Model Number: FAMOUS200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 600,000 tons per Year
Detailed Product Description
Material: Q345B Steel Surface Treatment: Painted Or Hot Dip.etc
Name: Army Portable Bridge Installation: Lifted Into Place By Hand Without Crane, Easier Construction.etc
Multi-use: Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. Carry Capacity: Resist Strong Wind And Earthquake, Bears Heavy Snow.etc
High Light:

temporary bailey bridge

,

bailey truss bridge

Long Span Pre-engineered Temporary Steel Bailey Bridge System Modular Panel Assembling Installation



Description of Steel Bailey Bridge System



A useful feature of the Bailey bridge is its ability to be launched from one side of a gap. In this system the front-most portion of the bridge is



angled up with wedges into a "launching nose" and most of the bridge is left without the roadbed and ribands. The bridge is placed on rollers



and simply pushed across the gap, using manpower or a truck or tracked vehicle, at which point the roller is removed (with the help of jacks)



and the ribands and roadbed installed, along with any additional panels and transoms that might be needed.





Specification of Steel Bailey Bridge System



Product Name Specification of Compact 200-type Bailey bridge
Width 4.2m
Maximum span 64meter single span
Bridge deck Steel composit panel
Steel grade Q345B
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Original painted
Advantages Price effective and technical full analysis and supports




Single lane: Standard roadway: 3.15m / 4.2m Single lane: 30ft-200ft
Double lane: Standard roadway:7.35m Double lane:30ft-180ft
Load: design according to different requirements Deck: steel deck/timber deck
Bridge type: CB200





The success of the Bailey bridge was due to the simplicity of the fabrication and assembly of its modular components, combined with the ability



to erect and deploy sections with a minimum of assistance from heavy equipment. Many previous designs for military bridges required cranes to



lift the pre-assembled bridge and lower it into place.





Application


Spans from 3.6m to 200m and more - for highways, railways, pathways, bicycle racks, landscaping, etc


Standardized designs - as per Indian BIS a. RC standards and codes


Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers


Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab


Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck


Aesthetic structures - the true arch form is accentuated.

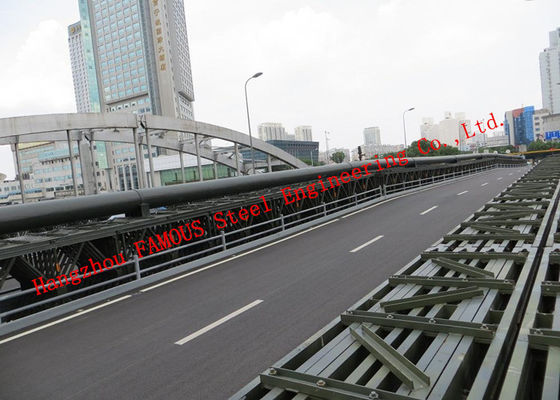

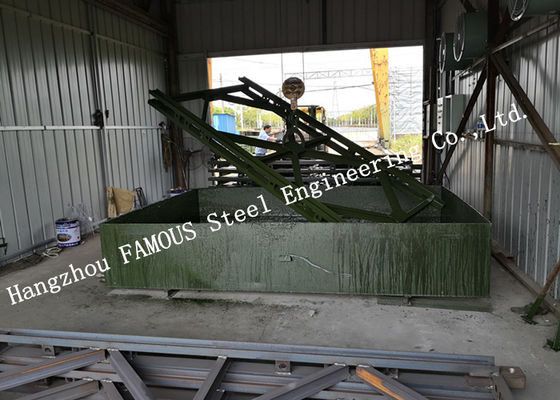

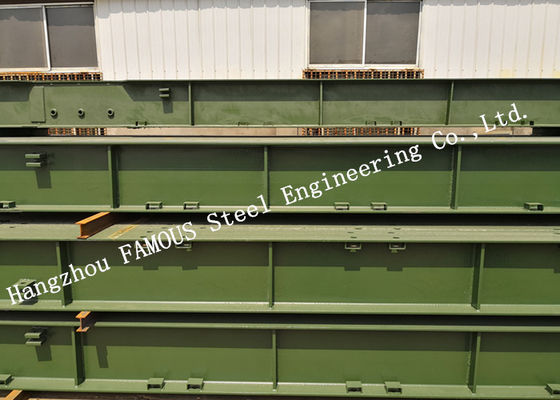

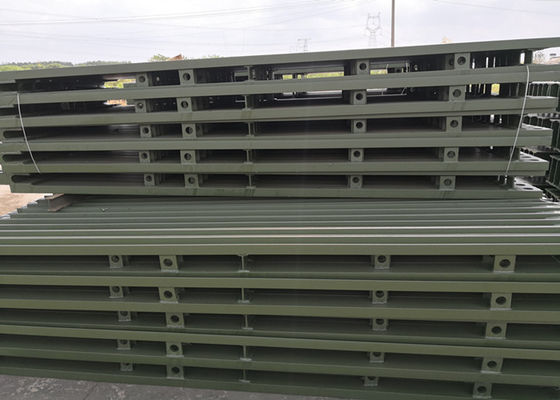

Parts of the bridge


The basic Bailey bridge is made up of three main parts, the floor, the stringers and the side panels. The floor of the bridge is made up of a



number of 19-foot-wide transoms (5.8 m) that run across the bridge. Across the bottom of these, forming a square, are 10-foot-long stringers



(3.0 m). The bridge's strength is provided by the panels on the sides. The panels are 10-foot-long (3.0 m), 5-foot-high (1.5 m), cross-braced



rectangles. Each weighs 570 pounds (260 kg), and can be lifted by six men.





Features


Modular, pre-engineered, pre-fabricated bridge system


Standard interchangeable components


Highly adaptable, fully reusable and re-locatable


Transported in standard ISO containers


Quick and simple to build using labour





Long Span  Pre Engineered Pedestrian Bridges Modular Panel Assembling Installation



Meanwhile various standards structural steel construction ranging from Europe EU Standard, America ASTM Standard, British BS Standard, Australia AS/NZS Standard are also available.



Warmly welcome all friends and clients from International market to visit us and have face talking together!
