Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized

China Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized supplier
Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized supplier Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized supplier Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized supplier

Large Image :  Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: ISO9001
Model Number: FMS200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 600,000 tons per Year
Detailed Product Description
Material: Steel Footbridge Standard: AISI, ASTM, BS, DIN, GB, JIS
Dimensions: Standard Place Of Origin: Hangzhou, China
Model Number: CB100(321-Type)&HD200 Type: Modular Deck -type Assembly Steel Bridges
Applicationa: Temporary Or Permanent Steel Structure Bridge Color: Light Gray, Hot Galvanized
High Light:

temporary modular bridge

,

prefabricated vehicle bridges

Hot Galvanized Double Lane Pre-engineered Modular Steel Bailey Bridge 200-type Construction

Description

Modular bailey bridge is a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. Using the bridge equipment, the suspension bridges of varied span can be erected.



Specification

Product Name Modular steel bridge
Width 3.7m
Maximum span 64meter single span and 200meter multi span
Bridge deck Steel composit panel
Steel grade Q345B (equivalent to ASTM A572)
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Original painted or Hot dip galvanized
Advantages Price effective and technical full analysis and supports



Three normal width bridges are as following:
3.15m width (model CB100/321): light weight and load, mostly used over middle or small span rivers.
4.2m (model HD200) width: marked both in metric and inch dimension, mostly used in International market over middle and large span rivers.
7.35m width (model HD200): two-lane bridge, widely used over various rivers.



Application

1. Standard Single Lane: Bridge deck width: 3.15m; Span length: 9.14-60.96m
2. Extra Single Lane: Bridge deck width: 4.2m; Span length: 9.14-60.96m
3. Standard Double Lanes: Bridge deck width: 7.35m; Span length: 9.14-51.816m
4. Panel Dimension: 3048MM*2134MM



Features and Benefits

Modular, pre-engineered, pre-fabricated bridge system
Standard interchangeable components
Highly adaptable, fully reusable and re-locatable
Transported in standard ISO containers
Quick and simple to build using labour
Fully galvanized for long life and minimum maintenance



Advantage
Heavy loading capacity
Great stability
Long fatigue life
Light weight
Low cost
Easy and fast erection



Installation

It is easy to mounting Bailey bridges without any help of cranes or hoists. One bridge installation can be finished only by hands of human power, using complete launching tools including roller, flat roller, roller frame, wrench and jack.
We’ll designate our professional installation team to install, or designate technical experts to guide the installation, according to customer's requirement.

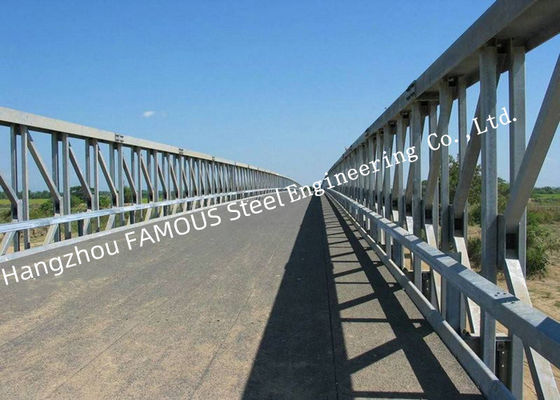

Precast Double Lane Modular Steel Bridge 200-type Construction Hot Galvanized



Our company

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
