Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C

China Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C supplier
Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C supplier Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C supplier Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C supplier Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C supplier

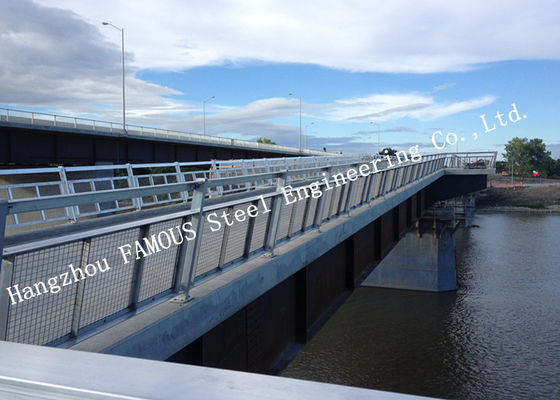

Large Image :  Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: ISO9001
Model Number: JBEC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Detailed Product Description
Name: Portable Pedestrian Bridge Grade: Q345B-Q460C
Dimensions: Standard Place Of Origin: Hangzhou, China
Brand Name: FAMOUS Model Number: CB100(321-Type)&HD200
Type: Modular Deck -type Assembly Steel Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Light Gray
High Light:

portable pedestrian bridge

,

pedestrian suspension bridge

Long Span Metal Structure For Pedestrian Overcrossing Steel Bailey Pedestrian Bridge Solutions

Description

Pedestrian bridges are needed where a separate pathway has to be provided for people to cross traffic flows or some physical obstacle, such as a river. The loads they carry are, in relation to highway or railway bridges, quite modest, and in most circumstances a fairly light structure is required. They are, however, frequently required to give a long clear span, and stiffness then becomes an important consideration. The bridges are often very clearly on view to the public and therefore the appearance merits careful attention.



Specification

Product Name Prefabricated Pedestrian Bridges
Width 4meter
Maximum span 64meter single span and 200meter multi span
Bridge deck Steel composit panel
Steel grade Q345B (equivalent to ASTM A572)
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Original painted or Hot dip galvanized
Advantages Price effective and technical full analysis and supports



History
First bridges in history were pedestrian bridges and they were made of wood. Ancient Rome started making stone bridges in the 2nd century BC over the Tiber River. Some of these ancient stone footbridges with arches still stand today. One of them is Ponte Fabricio which was built in 62 BC and it still has some of its original materials. Today, modern footbridges are made of wood, rope, metal and concrete.



Design
Design of pedestrian bridge normally follows the same principles as for other bridges. However, because they are normally significantly lighter than vehicular bridges, they are more vulnerable to vibration and therefore dynamics effects are often given more attention in design.
To ensure pedestrian bridges are accessible to disabled and other mobility-impaired people, careful consideration is nowadays also given to provision of access lifts or ramps, as required by relevant legislation.



Features
The width of a pedestrian bridge is usually quite modest, just sufficient to permit free passage in both directions for pedestrians. Occasionally the bridge will have segregated provision for pedestrians and cyclists, in which case it will need to be wider. Parapets are provided for the safety of both the pedestrians and traffic flow. Pedestrian bridgeS over railway lines are required to have higher parapets and be provided with solid panels directly over the rail tracks.



Characteristics
1.Environmental protection
2.Higher reliability of steel work
3.Strong quake proof
4.Higher degree of industrialization
5.Quick to be assembled accurately
6.Larger interior space



Long Span Metal Prefabricated Steel Truss Pedestrian Bridge Overcrossing Q345B - Q460C



Our company

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
