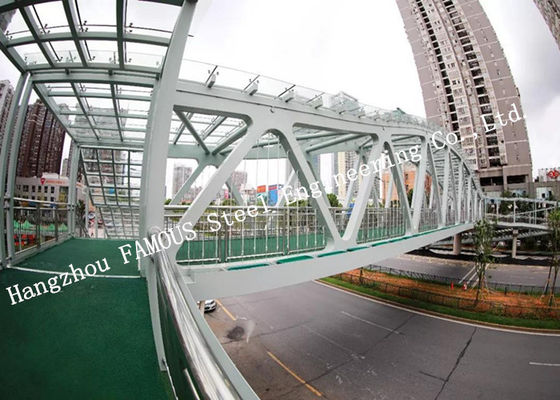

Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized

China Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized supplier
Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized supplier Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized supplier Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized supplier

Large Image :  Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized

Product Details:

Place of Origin: China
Brand Name: JZQL
Certification: ISO9001
Model Number: JBEC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Contact Now
Detailed Product Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Standard: AISI, ASTM, BS, DIN, GB, JIS
Grade: Q345B-Q460C Dimensions: Standard
Place Of Origin: JIangsu ,China(Mainland) Brand Name: FAMOUS
Model Number: CB100(321-Type)&HD200 Type: Modular Deck -type Assembly Steel Bridges
Application: Temporary Or Permanent Steel Structure Bridge Application: Temporary Or Permanent Steel Structure Bridge
Color: Gray

Customized Modular Q345B Steel Prefabricated Pedestrian Bridges Overcross Railway

Description

Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world. Pedestrian bridges, like any other bridge, must be long enough to clear the obstacle which is to be crossed and high enough not to interfere with whatever passes beneath the bridge. A pedestrian bridge is a bridge designed solely for pedestrians.



Specification

Product Name Prefabricated Pedestrian Bridges
Width 7.3meter
Maximum span 64meter single span and 200meter multi span
Bridge deck Steel composit panel
Steel grade Q345B (equivalent to ASTM A572)
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Original painted or Hot dip galvanized
Advantages Price effective and technical full analysis and supports



Application

Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of

various bridges are as follows:

· Road Bridges

· Railway Bridges

· Steel Truss Bridge

· Beam Bridges

· Steel Bailey bridge

· Structural Steel Box Bridge



Design
Design of pedestrian bridge normally follows the same principles as for other bridges. However, because they are normally significantly lighter than vehicular bridges, they are more vulnerable to vibration and therefore dynamics effects are often given more attention in design.
To ensure pedestrian bridges are accessible to disabled and other mobility-impaired people, careful consideration is nowadays also given to provision of access lifts or ramps, as required by relevant legislation.



Features
Provision of suitable access for wheelchairs and cyclists is often specified for pedestrian bridges. Access ramps must be provided and restricted to a maximum gradient. The consequent length of ramps where access is from the level of the road or rail track over which the bridge spans is generally much longer than the bridge itself. The form of construction suitable for the ramps may have a dominant influence on the final form of the bridge.



Characteristics
1.Environmental protection
2.Higher reliability of steel work
3.Strong quake proof
4.Higher degree of industrialization
5.Quick to be assembled accurately
6.Larger interior space



History
First bridges in history were pedestrian bridges and they were made of wood. Ancient Rome started making stone bridges in the 2nd century BC over the Tiber River. Some of these ancient stone footbridges with arches still stand today. One of them is Ponte Fabricio which was built in 62 BC and it still has some of its original materials. Today, modern footbridges are made of wood, rope, metal and concrete.

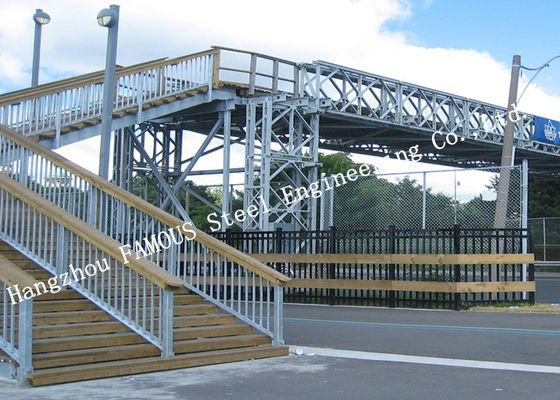

Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized



Our company

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!





Modular Prefabricated Pedestrian Bridges Overcross Railway Q345B Steel Customized
