Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard

China Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard supplier
Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard supplier Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard supplier Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard supplier Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard supplier Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard supplier

Large Image :  Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard

Product Details:

Place of Origin: China
Brand Name: JZQL
Certification: ISO9001
Model Number: JBEC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Contact Now
Detailed Product Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Grade: Q345B-Q460C
Dimensions: Standard Place Of Origin: JIangsu ,China(Mainland)
Brand Name: FAMOUS Model Number: CB200
Type: Modular Deck -type Assembly Steel Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Light Gray

CE/ASTM Standard Portable Steel Panel Bridge Modular Metal Bailey Bridge For Sale



Description

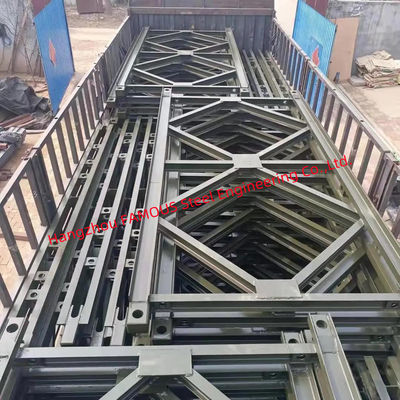

Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world. Bailey bridge panel consists of pannels,pins, post end, ,bolt, chord reinforcement ,truss bolt and chord bolt. Comprising upper & lower chord member, montant and raker welded. One end of the upper & lower chord member is female, and the other end is male, both with pin hole. While splicing the trusses, insert the male end of one truss into the female end of the other, aiming the pin hole and inserting the pin.



Specification



Type Single Lane/Double Lane/Special-made Lane
Bridge Type CB200
Corrosion Original Painted or Hot Dip Galvanized
Standard GB/BS
Color Army Green/Light Gray
Loading Design according to different requirements,like 40 Tons/Truck-60/Trailler-80



The compact 200 panel bridge: The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The difference is its increased panel height to 2.134m. It employed the method of alternating joints between Reinforcement Chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes.



Competitive Advantage
Heavy loading capacity
Great stability
Long fatigue life
Light weight
Low cost
Easy and fast erection



Application

Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:

· Road Bridges

· Pedestrian Bridges

· Railway Bridges

· Steel Truss Bridge

· Beam Bridges

· Steel Bailey bridge

· Structural Steel Box Bridge

· Highway Bridges

· Composite Beam Bridge

· Cable-Stayed Bridge

· Floating Bridge etc.



Our company

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Portable Steel Bridge Parts Metal Pre Engineered System Support CE/ASTM Standard



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
