Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction

China Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier
Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction supplier

Large Image :  Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction

Product Details:

Place of Origin: China
Brand Name: JZQL
Certification: ISO9001
Model Number: JBEC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Contact Now
Detailed Product Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Grade: Q345B-Q460C
Dimensions: Standard Place Of Origin: JIangsu ,China(Mainland)
Brand Name: FAMOUS Model Number: CB200
Type: Modular Deck -type Assembly Steel Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Army Green

Q345 Modular Bailey Panel Used For Temporary Support On Viaduct Overpass Expressway Construction

Description

Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.





Specification

Product Name
Specification of 200 type bailey bridge (Single lane)
Width
4.2M
Maximum span
30-230feet (10feet/section)
Bridge deck
Steel
Steel grade
Q345B
Loading capacity
According to requirements, such as HS20-44/Truck 20
Corrosion
Original painted or Hot dip galvanized
Advantages
Low price/Convenient transporation/Easy asembly and erection


"200" type bailey steel bridge increase truss height, the bearing capacity, the fatigue life and enhance the stable performance, finally improve the reliability. Compared with the 321 steel bridge, under the condition of the same combination type, the strength increased by 33%, the stiffness increased 2.3 times.


Application

Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:



· Road Bridges

· Pedestrian Bridges

· Railway Bridges

· Steel Truss Bridge

· Beam Bridges

· Steel Bailey bridge

· Structural Steel Box Bridge

· Highway Bridges

· Composite Beam Bridge

· Cable-Stayed Bridge

· Floating Bridge etc.



Parts of the bridge
The basic Bailey bridge is made up of three main parts, the floor, the stringers and the side panels. The floor of the bridge is made up of a number of 19-foot-wide transoms (5.8 m) that run across the bridge. Across the bottom of these, forming a square, are 10-foot-long stringers (3.0 m). The bridge's strength is provided by the panels on the sides. The panels are 10-foot-long (3.0 m), 5-foot-high (1.5 m), cross-braced rectangles. Each weighs 570 pounds (260 kg), and can be lifted by six men.



Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.

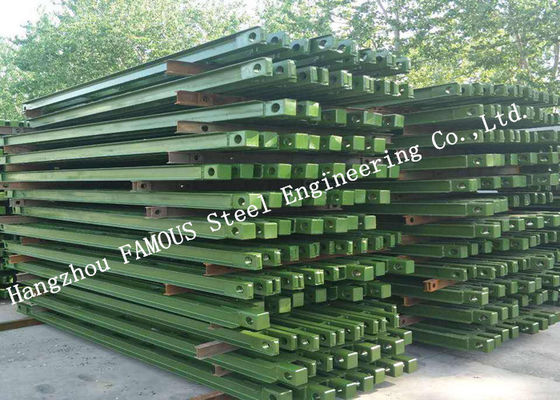

Q345 Bailey Bridge Panel , Bailey Bridge Parts Support On Viaduct Overpass Expressway Construction



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
