Amphibious Steel Truss Bridge , Truss Suspension Bridge Hot Dip Galvanized Surface Protection

China Amphibious Steel Truss Bridge , Truss Suspension Bridge Hot Dip Galvanized Surface Protection supplier
Amphibious Steel Truss Bridge , Truss Suspension Bridge Hot Dip Galvanized Surface Protection supplier Amphibious Steel Truss Bridge , Truss Suspension Bridge Hot Dip Galvanized Surface Protection supplier Amphibious Steel Truss Bridge , Truss Suspension Bridge Hot Dip Galvanized Surface Protection supplier

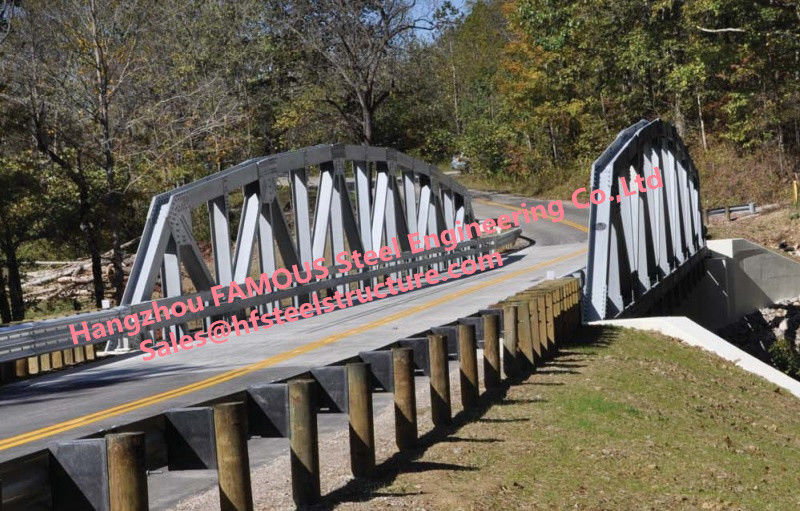

Large Image :  Amphibious Steel Truss Bridge , Truss Suspension Bridge Hot Dip Galvanized Surface Protection

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: ISO9001
Model Number: FAMOUS200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Detailed Product Description
NAME: Truss Suspension Bridge Grade: Q345B-Q460C
Dimensions: Standard Place Of Origin: Zhejiang,China(Mainland)
Brand Name: FAMOUS Model Number: CB100(321-Type)&HD200
Type: Modular Deck -type Assembly Steel Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Light Gray, Hot Galvanized
High Light:

prefabricated steel truss pedestrian bridge

,

truss style bridge

Amphibious Steel Truss Prefabricated Delta Bridge Steel Structure Bridge With Hot - Dip Galvanized Surface Protection



Description


Steel Bailey bridge is a type of portable, pre-fabricated, truss bridge. It was developed by the British during World War II for military use and saw extensive use by British, Canadian and US military engineering units. Steel Truss Bridge is a kind of Assembly Bridge down supporting, mainly used for medium spans. The bridge deck is concrete used as permanent bridge. The surface protection can be paint or hot-dip galvanized. Bridge load capacity, width can be designed according to user's requirements.



Specification

Product Name Specification of Compact 100 &200 Bailey bridge
Width 7.3meter
Maximum span 64meter single span and 200meter multi span
Bridge deck Steel composit panel
Steel grade Q345B (equivalent to ASTM A572)
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Hot dip galvanized
Advantages Price effective and technical full analysis and supports



A Bailey bridge had the advantages of requiring no special tools or heavy equipment to assemble. The wood and steel bridge elements were small and light enough to be carried in trucks and lifted into place by hand, without requiring the use of a crane.



Application

Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:



· Road Bridges

· Pedestrian Bridges

· Railway Bridges

· Steel Truss Bridge

· Beam Bridges

· Steel Bailey bridge

· Structural Steel Box Bridge

· Highway Bridges

· Composite Beam Bridge

· Cable-Stayed Bridge

· Floating Bridge etc.



Features and Benefits

a. High Strength

The high strength of steel per unit of weight means that structure weights will be small. This fact is of great importance for long-span bridges, tall buildings, and structures having poor foundation conditions.
b. Uniformity

The properties of steel do not change appreciably with time as do those of reinforced concrete structure.
c. Elasticity

Steel behaves closer to design assumptions than most materials because it follows Hooke's law up to fairly high stresses. The moments of inertia of a steel structure can be definitely calculated while the value obtained for a reinforced concrete structure are rather indefinite.steel structure space frame.
d. Permanence

Steel frames Prefab Steel Workshop that are properly maintained will last indefinitely. Research on some of the newer steels indicates that under certain conditions no painting maintenance whatsoever will be required custom steel structure.
e. Ductility

The property Prefab Steel Workshop of a material by which it can withstand extensive deformation without failure under high tensile stresses is said to be its ductility. When a mild or low-carbon structural steel member is being tested in tension , a considerable reduction in cross section and a large amount elongation will occur at the point of failure before the actual fracture occurs. A material that does not have this property is generally unacceptable and is probably hard and brittle and might break if subjected to a sudden shock .



Our experience

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.







Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
