Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction

China Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction supplier
Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction supplier Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction supplier Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction supplier Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction supplier

Large Image :  Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction

Product Details:

Place of Origin: China
Brand Name: JZQL
Certification: ISO9001
Model Number: JBEC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Contact Now
Detailed Product Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Grade: Q345B-Q460C
Dimensions: Standard Name: Portable Bridge Military
Brand Name: FAMOUS Model Number: CB100(321-Type)&HD200
Type: Modular Deck -type Assembly Steel Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Army Green

Pre Engineered Military Bailey Truss Panel Iron Bridge Manufacturing for Civil Construction Company



Description of Military Bailey Bridge



As one kind of Military Bailey Bridge, the Military pontoon bridges are usually built either by successively extending outward from the shore or by constructing whole sections as rafts and floating them into position. Truss bridges, for use where riverbanks are steep or navigation must be kept open, are made up in panels readily bolted together. Military truss bridges were pioneered in World War II by the highly successful British-invented Bailey bridge, which played an especially important role in the Allied campaign in Italy. Also during World War II, the scissors assault bridge was introduced; a folding bridge, consisting of a pair of solid-girder-supported deck sections, hinged at their juncture, was carried to the riverbank by a tank; opening out in an inverted V, it flattened into a level crossing.





Specification of Military Bailey Bridge



Product Name Specification of Compact 200-type Bailey bridge
Width 7.3m, 4.2m, 7.5m etc
Maximum span 64meter single span
Bridge deck Steel bridge panel
Steel grade Q460C A572 etc
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Original painted
Advantages Price effective and technical full analysis and supports



Modern refinements of basic types of military bridges have included increased use of aluminum, more efficient and stronger scissors types, and



greatly increased use of mechanical erecting equipment.





Application



It is a simple through-type bridge, that is to say a bridge with a roadway carried between two main load carrying lattice girders (trusses). The



lattice girders are built-up from a number of identical panels connected end to end by pins to form a continuous stiff girder from bank to bank. It



has the following usage



· Road Bridges



· Pedestrian Bridges



· Railway Bridges



· Steel Truss Bridge



· Beam Bridges



· Steel Bailey bridge



· Structural Steel Box Bridge





Competitive Advantage


Heavy loading capacity


Great stability


Long fatigue life


Light weight


Low cost


Easy and fast erection





History of Bailey bridge



By the 17th century, bridging equipment was part of the train of European and Turkish armies, with pontoons fashioned not only of timber but



also of leather, copper, and tin. Pneumatic pontoons with steel roadways made their appearance during World War II.

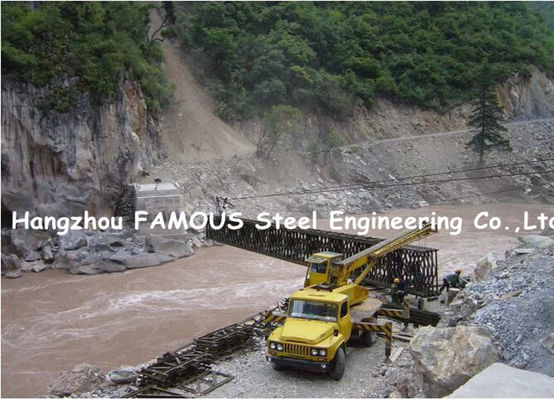

Pre Engineered Military Surplus Portable Bridges Panel Iron Civil Construction



Meanwhile various standards ranging from Europe EU Standard, America ASTM Standard, British BS Standard, Australia AS/NZS Standard structural steelworks construction and fabrication are also available.
