Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment

China Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment supplier
Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment supplier Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment supplier Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment supplier

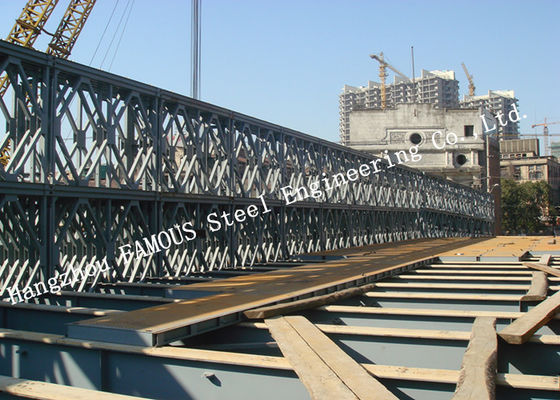

Large Image :  Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment

Product Details:

Place of Origin: China
Brand Name: Own
Certification: CE, ISO etc
Model Number: 200-type

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: in 30days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Contact Now
Detailed Product Description
Material: Steel Surface Treatment: Galvanized
Specification: Q345B Or Q460B Installation: Hoisting In Site
Multi-use: Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. Carry Capacity: Resist Strong Wind And Earthquake, Bears Heavy Snow.etc
Type: 100 Or 200 Color: Grey Or Black



Modern Style Prefabricated Modular Steel Bailey Bridge Galvanized Surface Treatment

Description

FAMOUS structural steel bridges are designed and constructed to China GB Standard Highway Bridge Loading Specification or other National Codes. Our Steel Bridges can be shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

Our services include the complete structural design and construction of your choice of bridge and we use only the highest quality China steel, which can be supplied hot dip galvanized if required.



Specification

Product Name Modular Steel Bailey Bridge
Width 4.6meter or others
Maximum span 64meter single span
Bridge deck Steel composit panel
Steel grade Q345B
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Hot dip galvanized or painted
Advantages Price effective and technical full analysis and supports



Application:

Spans from 3.6m to 31m and more - for highways, railways, pathways, bicycle racks, landscaping, etc

Standardized designs - as per Indian BIS a. RC standards and codes

Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers

Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab

Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck

Aesthetic structures - the true arch form is accentuated.



Advantages:

Bailey Bridge can form temporary bridges of various types and uses according to the different needs and spans of the site. Therefore, the Bailey frame has the characteristics of simple structure, convenient transportation, fast erection, easy decomposition, less construction, low cost and light weight. Moreover, the beret also has the characteristics of large carrying capacity, strong steel structure and long service life.



Stress characteristics
(1) The piers and columns are rigidly connected, and the beams are unloaded due to the bending resistance of the piers. The whole system is a compression-bending structure and also has a thrust structure.
(2) The clearance under the bridge of the steel truss bridge is larger than that of the arch bridge, and a smaller span can be constructed under the same clearance requirements.
(3) The construction of steel truss bridges is more complicated, and is generally used for overpass bridges and overpasses in cities or highways with small spans.
(4) Steel truss bridges constructed with prestressed concrete and cantilever construction have become one of the competition schemes for long-span bridges.



Our company

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Modern Style Prefabricated Modular Bailey Suspension Bridge Galvanized Surface Treatment



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
