Product Details:
Payment & Shipping Terms:
|
| Material: | Q345B Steel | Surface Treatment: | Painted Or Hot Dip.etc |
|---|---|---|---|
| Name: | Prefabricated Steel Truss Pedestrian Bridge | Installation: | Lifted Into Place By Hand Without Crane, Easier Construction.etc |
| Multi-use: | Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. | Carry Capacity: | Resist Strong Wind And Earthquake, Bears Heavy Snow.etc |
| Type: | 200-type | Color: | Grey |
| Highlight: | temporary bailey bridge,bailey truss bridge |
||

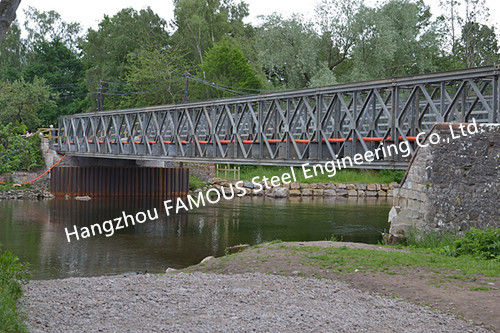

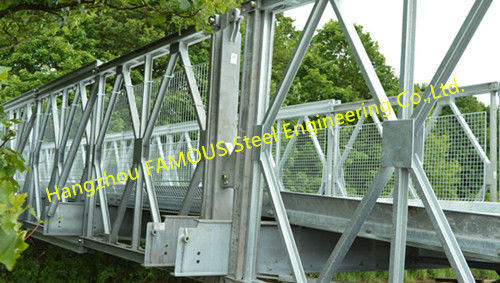

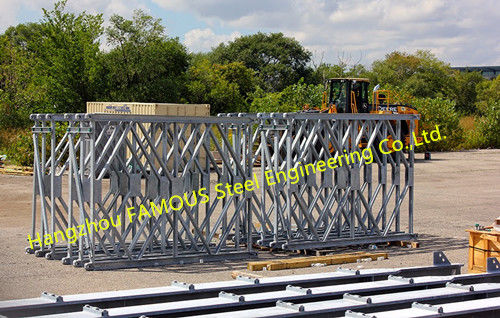

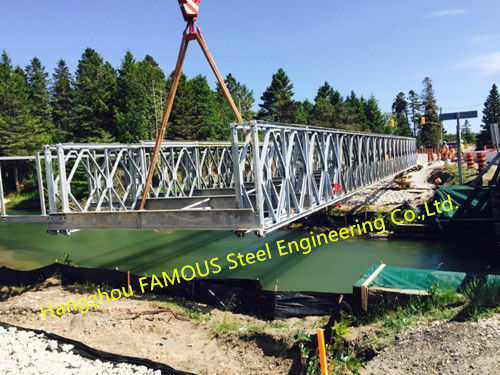

Description of Steel Bailey Bridge
Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components , Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.
Specification of Steel Bailey Bridge
| Product Name | Specification of Compact 100 &200 Bailey bridge |
| Width | 3.7meter, 4M, 4.2M, 7.3meter, 7.56meter |
| Maximum span | 64meter single span and 200meter multi span |
| Bridge deck | Steel composit panel |
| Steel grade | Q345B (equivalent to ASTM A572) |
| Loading capacity | 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20 |
| Corrosion | Original painted or Hot dip galvanized |
| Advantages | Price effective and technical full analysis and supports |
Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of
types dependent upon your specific bridge requirements.
Scope of Various Bridges
Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of
various bridges are as follows:
· Road Bridges
· Pedestrian Bridges
· Railway Bridges
· Steel Truss Bridge
· Beam Bridges
· Steel Bailey bridge
· Structural Steel Box Bridge
· Highway Bridges
· Composite Beam Bridge
· Cable-Stayed Bridge
· Floating Bridge etc.
Features
Fully galvanized for long life and minimum maintenance
3.048m module length
4.2m single lane
Proprietary steel decking systems to suit different loading requirements
Durbar finish or factory applied anti-skid surfacing
Full highway load carrying capability
Simple, cost effective foundations
Meanwhile various standards ranging from Europe EU Standard, America ASTM Standard, British BS Standard, Australia AS/NZS Standard structural steel construction are also available.
Warmly welcome all friends and clients from International market to visit us!
