bailey bridge parts
A Bailey bridge had the advantages of requiring no special tools or heavy equipment to assemble. The wood and steel bridge elements were small and light enough to be carried in trucks and lifted into place by hand, without requiring the use of a crane. The bridges were strong enough to carry tanks. Bailey bridges continue to be extensively used in civil engineering construction projects and to provide temporary crossings for foot and vehicle traffic.

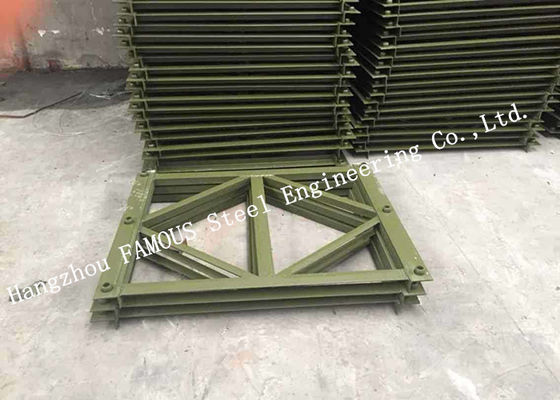

Bailey bridge panel consists of pannels,pins, post end, ,bolt, chord reinforcement ,truss bolt and chord bolt. Comprising upper & lower chord member, montant and raker welded. One end of the upper & lower chord member is female, and the other end is male, both with pin hole.
|Product Name||Specification of CB100 type bailey bridge (Single lane)|
|Maximum span||30-230feet (10feet/section)|
|Loading capacity||According to requirements, such as HS20-44/Truck 20|
|Corrosion||Hot dip galvanized|
|Advantages||Low price/Convenient transporation/Easy asembly and erection|
"200" type bailey steel bridge increase truss height, the bearing capacity, the fatigue life and enhance the stable performance, finally improve the reliability. Compared with the 321 steel bridge, under the condition of the same combination type, the strength increased by 33%, the stiffness increased 2.3 times.
The compact 100(CB100;321-Type) panel bridge is a type of bridge system that can be diassembled and rapidly erected. The whole bridge is welded with high-tensile strength steel. The girder is light weight composite panels and the panels are connected by panel connection pins. The conversion between the parts is easy and they are lightweight. It is easy to assemble or disassemble and transport them. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as a more developed and guaranteed panel bridges for emergency transportation. It is suitable for load designs of HS-15, HS-20, HS-25 and pedrail-50 etc.
Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.
Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.
From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.
Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.
