Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering

China Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering supplier
Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering supplier Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering supplier Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering supplier

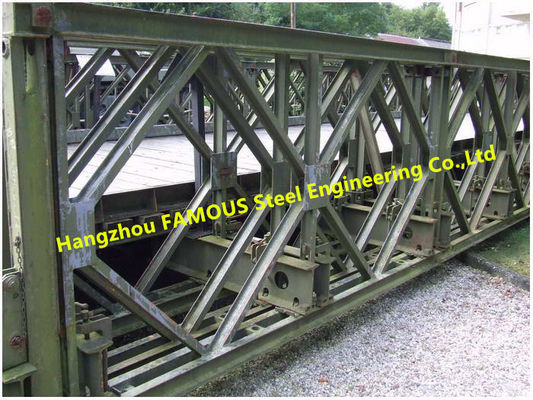

Large Image :  Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering

Product Details:

Place of Origin: China
Brand Name: Own
Certification: ISO9001, AWS D1.1, CE etc.
Model Number: 321-type or Compact 100, 200 equivalent

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1800 per ton

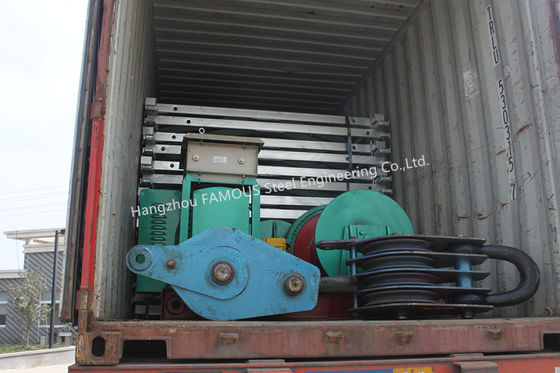

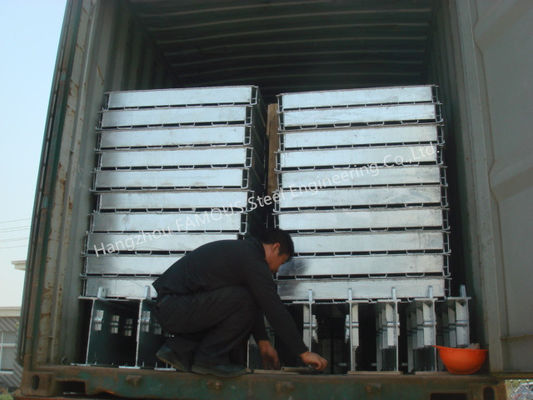

Packaging Details: seaworthy packings for container shipping
Delivery Time: within 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Detailed Product Description
Material: Q345B Steel (ASTM A572 Equ.) Q460 Steel Etc Surface Treatment: Painted Or Hot Dipped Galvanized Etc
Size: According To Client's Need Installation: Lifted Into Place By Hand Without Crane, Easier Construction.etc
Multi-use: Civil Engineering Construction Projects And To Provide Temporary Crossings For Foot & Vehicle Traffic. Carry Capacity: Temporary Bailey Bridge
Type: Compact 100, 200 Equivalent Color: Army Green Or White
High Light:

temporary bailey bridge

,

army bailey bridge

Pre-fabricated 3m Modular Panel Steel Bailey Bridge Metal Structure Engineering Assembled Long Span



Description of Galvanized Steel Bailey Bridge



Galvanized Steel Bailey bridge is a type of portable, pre-fabricated, truss panel standard section bridge. It was developed by the British during World War II for military use and saw extensive use by British, Canadian and US military engineering units. The bridge has the advantages of few components, light weight and low cost.  The Steel Bailey bridge in China is equivalent to compact 100,compact 200 International bridge. it is assembled by each 3m panel, and invented by Donald Bailey. The bridge adopts extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling.





Specification of Steel Bailey Bridge



Product Name Specification of Compact 321-type Bailey bridge or Compact 100, 200 equivalent
Width 4.2m, 3.7m, 4m, 7.56m etc
Maximum span 81meter single span or 200m multi-span
Bridge deck Steel composit panel
Steel grade Q345B (equivalent to ASTM A572) or Q460B
Loading capacity 20ton, 40ton up to 120ton truck etc,
Corrosion Original painted or Hot dip galvanized
Advantages Price effective and technical full analysis and supports



Our Steel Bailey Bridges are portable steel bridge have been widely used in various fields, its most important feature is to achieve a variety of



spans, bear carrying capacity, light and handy components, easy to dismantle and strong adaptability can be quickly completed with simple



tools and manpower.





Competitive Advantage


Heavy loading capacity


Great stability


Long fatigue life


Light weight and smart


Low cost


Easy and fast erection





Application



Our company JBEC can do the design, fabrication and installation of steel bailey bridge for you according to your requirement, and we



have much experience in this field. Our steel bailey bridge has a wide range of uses in the following areas:



· Road Bridges



· Pedestrian Bridges



· Railway Bridges



· Steel Truss Bridge



· Beam Bridges



· Steel Bailey bridge



· Structural Steel Box Bridge



· Highway Bridges



· Composite Beam Bridge



· Cable-Stayed Bridge



· Floating Pontoon Bridge etc.





Features


Fully galvanized for long life and minimum maintenance


3.7m-4.2m single lane


Durbar finish or factory applied anti-skid surfacing


Simple, cost effective foundations



Long Span Steel Bailey Bridge , 3m Metal Modular Steel Bridge Structure Engineering



We are hornoed, from material purchase and tracing, shop drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, to have separated department to strictly control process, quality and traceability, so that the perfect structural steel bridge can be made.



Meanwhile various standards ranging from Europe EU Standard, America ASTM Standard, British BS Standard, Australia AS/NZS Standard structural steelworks fabrication are also available.



Warmly welcome all friends and clients from International market to visit us and have face talking together!
