Portable Steel Bailey Suspension Structural Bridge for Public Transportation

China Portable Steel Bailey Suspension Structural Bridge for Public Transportation supplier
Portable Steel Bailey Suspension Structural Bridge for Public Transportation supplier Portable Steel Bailey Suspension Structural Bridge for Public Transportation supplier Portable Steel Bailey Suspension Structural Bridge for Public Transportation supplier Portable Steel Bailey Suspension Structural Bridge for Public Transportation supplier

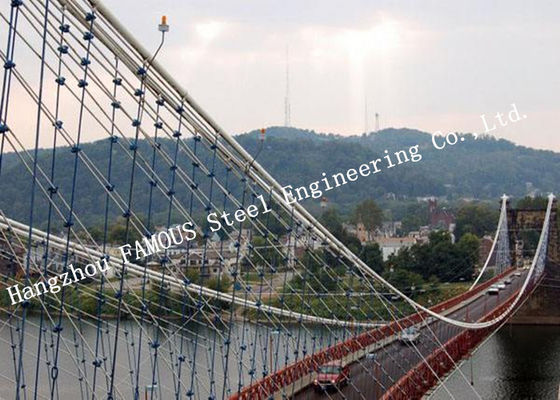

Large Image :  Portable Steel Bailey Suspension Structural Bridge for Public Transportation

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: ISO9001
Model Number: FMS200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Detailed Product Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Grade: Q345B-Q460C
Dimensions: Standard Place Of Origin: Hangzhou, China
Brand Name: FAMOUS Model Number: CB100 Or HD200
Type: Suspension Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Army Green Or Customized
High Light:

wire rope bridge

,

cable suspension bridge

New Design Portable Steel Bailey Suspension Structural Bridge for Public Transportation

Bailey bridge is standard bridge equipment, adopted extensively and the most popular in the world.While has the characteristics of simple structure, convenient transportation, rapid erection and easy decomposition,is widely used as emergency road againt earthquakes,flood,mud-rock flow.In additional,the bailey bridge truss and structures are used in various configuration as platform,trestle,hung basket,service road,or other supporting structure during Subway,High-speed railway,highway, hydropower station construction.Also,it has the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, long capacity and mixture form to erect all kinds and usage of temporary bridges, emergency bridges and fixed bridges.
Specifications:

Product NameNew design portable suspension bridge
MaterialQ235/Q345 or as request
Color
Army Green or Customized



StandardAISI, ASTM, BS, DIN, GB, JIS
ModelCB321Type Bridge
HD200 Type Bridge
Product characteristics/AdvantagesAll robots in the production line are intelligent automated
Supply Ability50000 Ton/Tons per Year
UsedSteel Structure Bridge,disaster Relief, dangerous bridge reinforcement etc.reinforcement etc.


Product Features:

New design portable suspension bridge
1. Speed construction- pre-engineered components.
2. Easy - to handle, transport, assemble, install and reuse.
3. Cost effective to own and re-use in different length bridges.
4. Damaged parts can be easily and quickly replaced from stock.
5. All steel is precision CNC machined and laser cut components.
6. Faithfully replicates the key component of the original Bailey Bridge, including the Panels, Transoms, Stringers, Chesses, Ribands, Rakers, Bracing Frames, End Posts and Sway Braces.
7. Additional sections can be added to increase the length of the bridge.
8. Additional panels can be added to create Double and Triple panel bridges.
9. Includes all fasteners, pins and bearings.
10: Sections can easily be separated for transport.



New design portable suspension bridge

321(100)Model steel bridge truss geometric characteristics table
Geometric characteristics / Bridge model
No reinforce type
SS
DS
TS
DDR
TD
J(cm)
250497.2
500994.4
751491.6
2148588.8
3222883.2
W(cm)
3578.5
7157.1
10735.6
14817.9
22226.8
Geometric characteristics / Bridge model
Reinforce type
SSR
DSR
TSR
DDR
TDR
J(cm)
577434.4
1154868.8
1732303.2
4596255.2
6894383.8
W(cm)
7699.1
15390.3
23097.4
30641.7
45962.6




321(100)Model steel bridge truss press limited table
Internal force / Structure form
No reinforce type
SS
DS
TS
DDR
TD
The truss moment
788.2
1576.4
2246.4
3265.4
4653.2
The truss scissors
245.2
490.5
698.9
490.5
698.9
Internal force / Structure form
Reinforce type
SSR
DSR
TSR
DDR
TDR
The truss moment
1687.5
3375
4809.4
6750
9618.8
The truss scissors
245.2
490.5
698.9
490.5
698.9


Portable Steel Bailey Suspension Structural Bridge for Public Transportation
Our company
Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.
Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.
From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.
Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.
Warmly welcome all friends and clients from International market to visit us!
