Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members

China Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members supplier
Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members supplier Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members supplier Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members supplier

Large Image :  Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members

Product Details:

Place of Origin: China
Brand Name: JZQL
Certification: ISO9001
Model Number: JBEC200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Detailed Product Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Grade: Q345B-Q460C
Dimensions: Standard Place Of Origin: JIangsu ,China(Mainland)
Brand Name: FAMOUS Model Number: CB100(321-Type)&HD200
Type: Modular Deck -type Assembly Steel Bridges Application: Temporary Or Permanent Steel Structure Bridge
Color: Army Green
High Light:

bailey panel

,

bailey bridge parts

CB100/HD200 Modular Bailey Panel For Bridges Structral Frames Or Building Support Members

Description

Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.



Specification

Product Name
Specification of Compact 100 &200 Bailey bridge
Width
3.7meter, 4M, 4.2M, 7.3meter, 7.56meter
Maximum span
64meter single span and 200meter multi span
Bridge deck
Steel composit panel
Steel grade
Q345B (equivalent to ASTM A572)
Loading capacity
20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion
Original painted or Hot dip galvanized
Advantages
Price effective and technical full analysis and supports





Application

Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:



· Road Bridges

· Pedestrian Bridges

· Railway Bridges

· Steel Truss Bridge

· Beam Bridges

· Steel Bailey bridge

· Structural Steel Box Bridge

· Highway Bridges

· Composite Beam Bridge

· Cable-Stayed Bridge

· Floating Bridge etc.



Features
Modular, pre-engineered, pre-fabricated bridge system
Standard interchangeable components
Highly adaptable, fully reusable and re-locatable

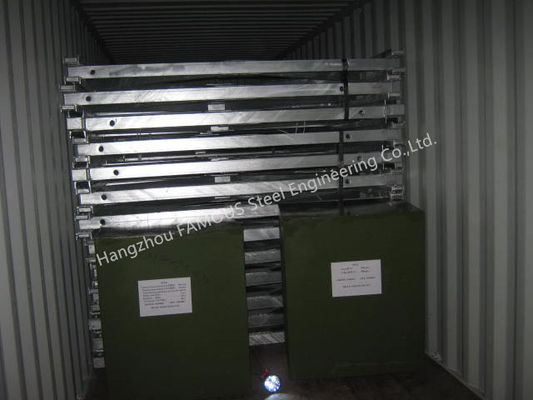

Transported in standard ISO containers
Quick and simple to build using labour
Fully galvanized for long life and minimum maintenance
3.048m module length
4.2m single lane
Proprietary steel decking systems to suit different loading requirements
Durbar finish or factory applied anti-skid surfacing
Full highway load carrying capability
Simple, cost effective foundations



Advantage

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Portable Bailey Bridge Panel CB100/HD200 For Bridges Structral Frames Or Building Support Members



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
