Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness

China Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness supplier
Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness supplier Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness supplier Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness supplier

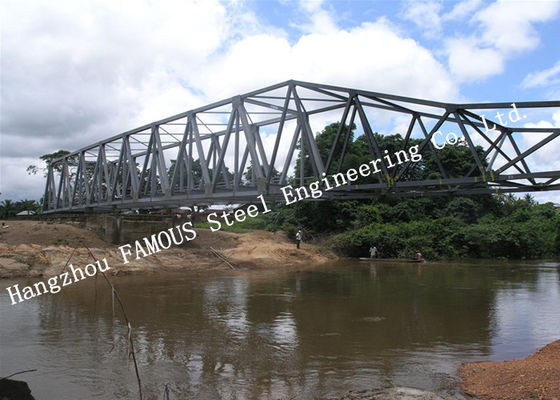

Large Image :  Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: ISO9001
Model Number: FAMOUS200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000~USD1200 per ton
Packaging Details: seaworthy packings for container shipping
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 10000 units per year
Detailed Product Description
Name: Truss Style Bridge Grade: Q345B-Q460C
Type: Modular Deck -type Assembly Steel Bridges Place Of Origin: Zhejiang ,China(Mainland)
Brand Name: FAMOUS Model Number: CB100(321-Type)&HD200
Application: Temporary Or Permanent Steel Structure Bridge Color: Light Gray, Hot Galvanized
High Light:

prefabricated steel truss pedestrian bridge

,

truss style bridge

Prefabricated Delta Assembly Modular Steel Bridge With Concrete Deck High Stiffness Steel Truss Bridge

Description

A steel truss bridge is a structural system between a beam and an arch. It is a structure in which a bent upper beam structure and a lower pressure column are integrally combined. Due to the rigid connection of the beam and the column, the beam is unloaded due to the bending stiffness of the column. The whole system is a bent structure and a thrust structure.



Specification

Product Name Specification of Compact 100 &200 Bailey bridge
Width 7.3meter
Maximum span 64meter single span and 200meter multi span
Bridge deck Steel composit panel
Steel grade Q345B (equivalent to ASTM A572)
Loading capacity 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20
Corrosion Hot dip galvanized
Advantages Price effective and technical full analysis and supports



Steel Truss Bridge is a kind of Assembly Bridge down supporting, mainly used for medium spans. The bridge deck is concrete used as permanent bridge. The surface protection can be paint or hot-dip galvanized. Bridge load capacity, width can be designed according to user's requirements.



Application

Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.

Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:

Spans from 3.6m to 31m and more - for highways, railways, pathways, bicycle racks, landscaping, etc

Standardized designs - as per Indian BIS a. RC standards and codes

Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers

Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab

Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck

Aesthetic structures - the true arch form is accentuated.



Features and Benefits
Modular, pre-engineered, pre-fabricated bridge system
Standard interchangeable components
Highly adaptable, fully reusable and re-locatable
Transported in standard ISO containers
Quick and simple to build using labour
Fully galvanized for long life and minimum maintenance
3.048m module length
4.2m single lane
Proprietary steel decking systems to suit different loading requirements
Durbar finish or factory applied anti-skid surfacing
Full highway load carrying capability
Simple, cost effective foundations



Our Experience

Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.



Continental Prefabricated Steel Truss Pedestrian Bridge With Concrete Deck High Stiffness



Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.



From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.



Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.

Warmly welcome all friends and clients from International market to visit us!
