Product Details:
Payment & Shipping Terms:
|
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | Q345B-Q460C |
---|---|---|---|
Dimensions: | Standard | Place Of Origin: | Hangzhou, China |
Brand Name: | FAMOUS | Model Number: | CB100(321-Type)&HD200 |
Type: | Modular Deck -type Assembly Steel Bridges | Application: | Temporary Or Permanent Steel Structure Bridge |
Color: | Army Blue, Light Gray, Hot Galvanized Or Customized.etc | ||
Highlight: | steel bridge components,steel bridge parts |

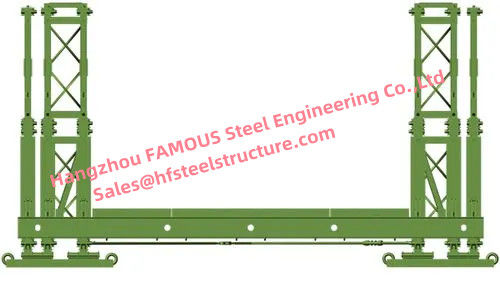

General Description of Bailey Bridge Components
We have built own moulding system to fabricate the British Standard Compact 100 Steel Bridge Bailey Panels, Beams, Transoms, End Posts, Chord Reinforced and its connection accessories etc.
Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.
Specification of Bailey Bridge Components
Product Name
|
Compact 100 &200 Steel Bailey bridge
|
Width
|
4M, 4.2M, 7.3meter, 7.56meter
|
Maximum span
|
64meter single span and 200meter multi span
|
Bridge deck
|
Steel composit panel
|
Steel grade
|
Q345B (equivalent to ASTM A572)
|
Loading capacity
|
up to 120ton truck, or HS20-44, HS25-44/Truck 20
|
Corrosion
|
Original painted or Hot dip galvanized
|
Advantages
|
Price effective and technical full analysis and supports
|
Application
Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements of different spans and usage.
Except the steel bridge components, Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:
· National Road Bridges
· Overpass Pedestrian Bridges
· Railway Bridges
· Steel Truss Bridge
· Beam Bridges
· Steel Bailey bridge
· Structural Steel Box Bridge
· Highway Bridges
· Composite Beam Bridge
· Cable-Stayed Bridge
· Floating Bridge etc.
Features and Benefits
Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.
Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.
Advantage
From material purchase and tracing, planning compilation, drawing detailing, fabrication arrangement, quality inspection, to on-going painting or galvanizing, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.
Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.
Warmly welcome all friends and clients from International market to visit us!
