Product Details:
Payment & Shipping Terms:
|
Surface Treatment: | Hot Dip Galvanized Or Painted | Material: | Steel |
---|---|---|---|
Cost: | Reasonable | Warranty: | 3 To 50 Years |
Grade: | Q235 Q345 & Q355B Steel | Performance: | Safety, Convenient, Easy To Install Etc. |
Size: | Customized Size | Application: | River, Farm, Highway, Railway, Emergency, Military |
High Light: | Vehicle Farm Steel Truss Bridge,High Strength Modular Panel Bridge,Prefabricated Modular Panel Bridge |
Product Description
A modular steel bridge is designed to carry the weight of vehicles. Strong and lightweight, these bridges allow you to bridge a road over a stream, railroad, or gulch inexpensively and easily. Modular steel bridges are designed to carry standard highway loads and they can be single or multiple lanes.
Modular steel bridges can be permanent or temporary. Some municipalities will use a temporary modular steel bridge for a road detour, for example. A modular steel bridge can also be a permanent road bridge for an urban or rural area.
Bailey Bridges we supply is a modular bridging system that can span up to 67meters. Composed of steel truss panels, these elements are connected together by bolts and pins. The installation completed for panel bridges does not require any specific tools or heavy equipment, and all these elements can be handled manually by a team of 6 workers.
The bridge is available in a standard width of 3.15m, but also in extra-wide lane (4.20 meters), double lane (7.35 meters) and optional sidewalks. All the components are generally shipped in standard containers.
Specifications:
Single lane | STD Carriageway Net Width: 4.2m | Single span: 18m-67m |
Double lane | STD Carriageway Net Width:7.35m | Single span: 18m-67m |
Bridge deck | Anti-slip steel decking floor,checkered steel plate etc |
Steel grade | Q345B/Q355 (equivalent to ASTM A572) or custom required |
Loading capacity | 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20/HL-93 |
Installation of the Steel Modular Bridge:
Method 1 Craning: use of certain tons capacity crane on site, which allows a quick and easy assembly and installation
Method 2 Launching: When the site does not allow crane to work, the Panel Bridge, which can be carried by manpower, can be assembled manually and installed by launching using a pushing device with a limited capacity.
Advantages:
Long-term corrosion protection
High level of mechanical resilience
Perfect all-round protection also in cavities and edges
Cathodic corrosion protection
Attractive appearance
Very economical
Maintenance free
Good Eco-balance, environmentally-friendly process
Applications:
Infrastructure upgrading
Railway
Highway
Footbridge
Emergency
Military
Residential community
Farms
Rural areas
Temporary
Permanent
FAMOUS runs two well-equipped production bases and the capacity of each one is around 30000-40000tons per year. there are many domestic/overseas projects on the going. In addtion to ISO, we also have the certification of AWS D1.1, AWS D1.5 Bridge field specialized Certification, related tests/inspections have been done .

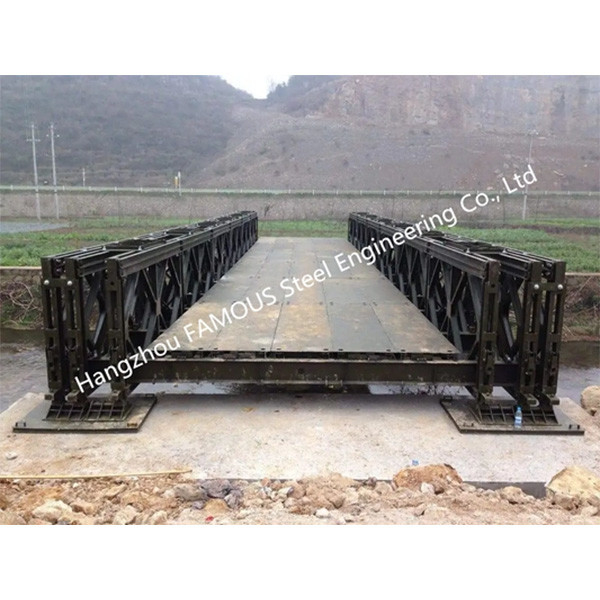

Product images:
If you are interested, please contact us for a quote in whichever means you prefer.
