Payment & Shipping Terms:
|Standard:||AISI, ASTM, BS, DIN, GB, JIS||Grade:||Railway Steel Bridge|
|Dimensions:||Standard||Place Of Origin:||Zhejiang ,China(Mainland)|
|Brand Name:||FAMOUS||Model Number:||CB100(321-Type)&HD200|
|Type:||Modular Deck -type Assembly Steel Bridges||Application:||Temporary Or Permanent Steel Structure Bridge|
|Color:||Light Gray, Hot Galvanized|
prefabricated steel bridges,
steel pedestrian bridge
Steel Bailey Bridge (Panel Bridge) is a standard bridge equipment, adopted extensively and the most popular in the world, possessing the
features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading
capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of
Temporary Bridges, Emergency Bridges and Fixed Bridges. Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost. Galvanized steel is a lighter-weight construction material than concrete, which makes it ideal for long-spanning bridges. Additionally, the production process has significantly improved over time. When the Golden Gate bridge was built in the 1930s, it used 83,000 tons of steel. Today, that same project would require only half the amount. Steel’s high strength-to-weight ratio makes it one of the most trusted bridge-building materials in the world.
|Product Name||Galvanized steel bridge|
|Maximum span||64meter single span and 200meter multi span|
|Bridge deck||Steel composit panel|
|Steel grade||Q345B (equivalent to ASTM A572)|
|Loading capacity||20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20|
|Corrosion||Hot dip galvanized|
|Advantages||Price effective and technical full analysis and supports|
Our Steel Bailey Bridges have been shipped and erected world-wide and are designed to suit a range of applications and come in a variety of types dependent upon your specific bridge requirements.
Our services include the complete complete bridge design and construction as per Client's choice of bridge features, and the scope of various bridges are as follows:
Spans from 3.6m to 31m and more - for highways, railways, pathways, bicycle racks, landscaping, etc
Standardized designs - as per Indian BIS a. RC standards and codes
Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers
Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab
Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck
Aesthetic structures - the true arch form is accentuated.
Modular, pre-engineered, pre-fabricated bridge system
Standard interchangeable components
Highly adaptable, fully reusable and re-locatable

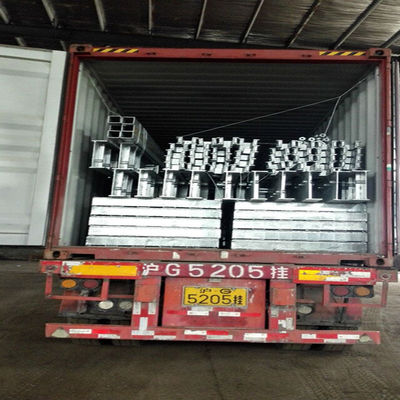

Transported in standard ISO containers
Quick and simple to build using labour
Fully galvanized for long life and minimum maintenance
3.048m module length
4.2m single lane
Proprietary steel decking systems to suit different loading requirements
Durbar finish or factory applied anti-skid surfacing
Full highway load carrying capability
Simple, cost effective foundations
Long-term corrosion protection
High level of mechanical resilience
Perfect all-round protection also in cavities and edges
Cathodic corrosion protection
Good Eco-balance, environmentally-friendly process
Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.
Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.
From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.
Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.
Warmly welcome all friends and clients from International market to visit us!
